BRUX
Alfa Laval BRUX, a VLB validated separator, is specifically designed for continuous in-line removal of surplus yeast as well as micro-organisms and cell debris. As a beer centrifuge and yeast centrifuge, its gentle low shear operation helps maintain high yeast vitality and preserves the quality of the recovered beer, reducing costs. The unique design supports efficient separation in an automated process that meets strict hygienic standards.
Experience the benefits of the BRUX centrifuges for beer production:
- Efficient and gentle single pass results in high vitality yeast and high quality of recovered beer
- No pick-up of oxygen owing to hydro hermetic seal with added CO2 and de-aerated water
- Short pay-back time as single BRUX module can recover up to 5 million hl a year brewery plant case
- Easy to install owing to compact, modular design
- Low operating costs
All liquid-wetted parts are made of high-grade stainless steel to ensure maximum hygienic standard. Solids pockets are machined out the wall of the bowl, which avoids undesirable accumulation of solids and prevents bacteriological contamination. For the beer recovery process, Alfa Laval offers a complete process with the BRUX nozzle separator as a core component including surplus yeast collecting tank, recovered beer tank as well as concentrated yeast tank.
How do BRUX beer separators work?
The BRUX nozzle centrifuge has a unique combination of design features that ensures efficient separation in fully automated processes. The unique vortex nozzles automatically assure constant solids concentration at the nozzle outlet at constant solids feed. This self-regulating feature is based on the relationship between the viscosity of the liquid entering the nozzle chamber and the effect of its rotational velocity on the pressure drop. Solids flow rate can be adjusted by choosing different nozzle diameters.
Efficient separation
The BRUX disc-type bowl is equipped with concentrate tubes leading to vortex nozzles. The gravitational force of the bowl forces the yeast (solids phase) outwards into solids pockets at the periphery of the bowl and, from there, through the concentrate tubes and internal vortex nozzles into a paring tube chamber. Once in the chamber, the concentrate is skimmed off by the paring tube and discharged from the separator under pressure. The liquid phase is clarified as it passes through the disc-stack towards the centre of the bowl from where it is discharged under pressure by a paring disc pump at the top of the frame hood.
Highest yeast vitality
Due to constant solids discharge through the nozzles (one pass) and low shear forces in the centrifuge bowl, solids treatment is very gentle. The result is the highest yeast vitality of all current beer recovery methods available.
High quality recovered beer
The gentle treatment also maintains the quality of the recovered beer. It is so high that customers report that it can be dosed as 5% of mainstream beer volume downstream prior to final filtration with no adverse effect on final beer quality. Recovered beer can also be dosed back to the hot wort (prior to the wort cooler), fermentation or maturation.
Designed for cleaning-in-place
The BRUX is fully CIP cleanable to avoid bacteriological contamination. During the cleaning cycle, which is carried out with the machine at full speed, a valve slide under the bowl momentarily opens the CIP valves permitting the ejection of solids together with some washing liquid. The system is designed in such a way that solids ejections can be performed in certain intervals. CIP liquid is supplied from central CIP station and is cleaned as a ‘pipe’. Design of machine is such that the module is cleaned with feed and both outlet pipes (beer and yeast) all the way to the tanks in one only loop.
Servis
Rozšírenie výkonu vášho zariadenia
Naša špecializovaná globálna servisná sieť vás podporuje prostredníctvom náhradných dielov a odborných znalostí, kdekoľvek sa nachádzate a kedykoľvek ich potrebujete. Zabezpečením dlhšej prevádzky bez prestojov, dostupnosti a optimalizácie vám prinášame pokoj a pomáhame vám maximalizovať návratnosť investícií. Môžeme Vám pomôcť integrovať naše služby do dohody o poskytovaní služieb so spoločnosťou Alfa Laval v záujme predvídateľnej a bezstarostnej prevádzky.

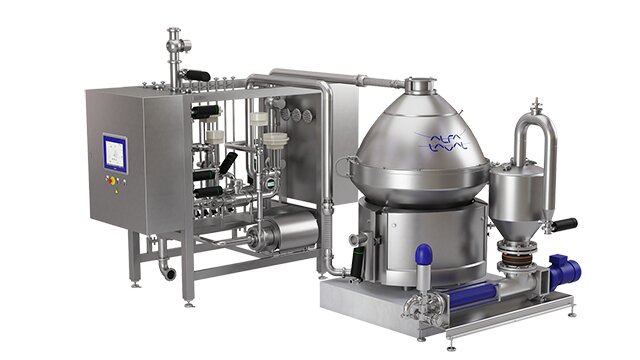

Explore our Industrial Brew separators
Alfa Laval Industrial Brew centrifuges have a long history of enabling breweries around the world to achieve higher yields, meet shifts in demand and maintain profitability.

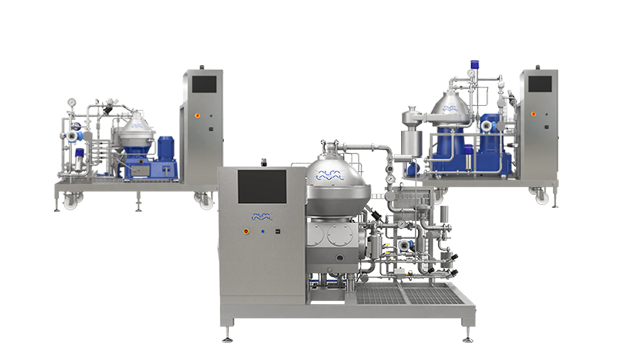

Explore our Craft Brew separators
