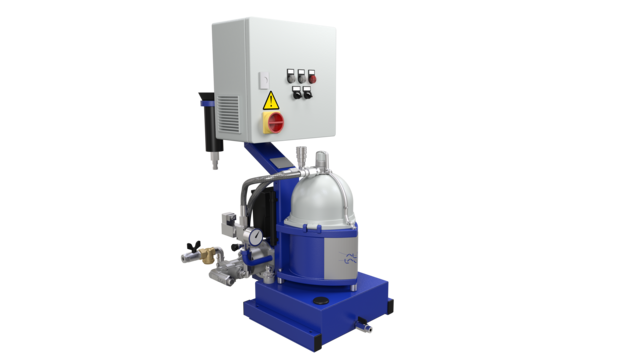

MIB
Cut maintenance time and costs with the Alfa Laval MIB series. Rely on advanced centrifugal separation for effective lubricating oil cleaning, soot and water reduction, and less engine wear. This lubrication oil purifier (LO Purifier) is smaller and lighter than traditional models, thanks to innovative design and drive technology. Keeping your engines cleaner and your operations stronger.
Efficient LO Purifier with lasting strength and minimal footprint
- New design allows you to clean the bowl with the disc stack still in place
- Direct drive with motor speed controlled by a frequency converter, eliminating gears and belts
- No lubrication required
- Small footprint allows installation in narrow spaces
- Biofuel ready – compatible with HVO (EN15940) and with FAME (EN14214 or ASTM D6751) blends comprising distillate
Installing, operating, and maintaining solid-bowl separators is now simpler than ever. The Alfa Laval MIB 303 and 503 systems feature innovative designs and materials to boost performance and make every task easier. Cut maintenance hours and enhance oil system reliability—perfect for low-contamination applications needing continuous treatment. Let’s make every day smoother, together!
Features that simplify separation
Easy installation
Require little in terms of utilities for operation – a power supply and heating are all that is required for the separator to work.
Easy operation
Designed to simplify operation and maintenance, reducing downtime and maintenance intensity and costs.
Direct drive system
The MIB LO purifier stands out with its innovative design, small footprint, and a direct drive system that eliminates the need for lubrication.
Collecting solids in the bowl
Designed to continuously separate liquids while collecting solids in the bowl provides a significant advantage by eliminating the need for a sludge tank.
Proven durability and performance
Built to optimize engine performance and enhance durability of the engine keeping the lube oil clean.
Biofuel ready
Compatible with HVO (EN15940) and FAME (EN14214 or ASTM D6751) blends, making them ready for biofuel applications.
How it works
Ako to funguje
Separácia prebieha v rotujúcej nádobe s plným opláštením. Odstredivá sila vytáča vodu a pevné čiastočky smerom von. Voda sa zhromažďuje v tesnení, z ktorého odteká do kanálika pod ním. Pevné čiastočky sa zhromažďujú na stene nádoby a dajú sa ľahko odstrániť ručne.
Čistý olej prúdi smerom dovnútra a hore k lopatkovému disku. Keďže čistý olej sa otáča, tento stacionárny disk funguje ako čerpadlo a tlačí ho von cez výpust.
Real-life oil cleaning experience with Alfa Laval MIB separators
Achieving more with less effort
On many workboats and leisure vessels, reliability, time and money are in focus on the Dutch fishing vessel Prins Maurits. Using an Alfa Laval MIB 503 separator, Chief Engineer Auke van Slooten has doubled the life expectancy of his main engine’s lube oil, saving 1400 litres of oil a year and nearly two hours of cleaning time per week. Such results – and Alfa Laval’s close support – are the basis for a long history of cooperation.
Vyberte si vhodný systém podľa svojej potreby
Separátor MIB je možné použiť na čistenie alebo čírenie. Ak používate destilát alebo lodnú naftu, mali by ste ho použiť na čistenie. Ak ho chcete použiť na mazací olej, môžete ho použiť v režime čistenia alebo čírenia.
Vyberte si medzi samostatnými a modulovými verziami. Modul obsahuje všetko vybavenie v kompaktnej jednotke. Sú k dispozícii v prevedení pre 230 V AC aj pre 110 V AC.
Distillate fuels (MGO/MDO) / Lubricating oils
MIB503 separators clean distillates and lubricating oils with densities up to 920 kg/m3 at 15°C and viscosities up to 150 cSt at 40°C.
Biofuels
The separator can treat distillate fuels according to ISO 8217 comprising FAME or HVO in any blend ratio,
- where FAME at the time of blending shall be in accordance with the requirements of EN 14214 or ASTM D6751.
- where HVO at the time of blending shall be in accordance with the requirements of EN 15940.
Other types of biofuels, such as vegetable oils or blends of FAME and HVO components outside the above-mentioned standards, should be evaluated on a case-by-case basis.
For these types of fuels please consult your local Alfa Laval office
Expert corner - get detailed insights on lube oil cleaning
Vplyv IMO 2020 na mazanie motorov lodí
Z dôvodu zmien v typoch lodných palív je potrebné opätovne posúdiť požiadavky na mazivá. Odstredivé separátory sú ideálne na odstránenie nerozpustných látok a vody z mazacích olejov, aby sa zabezpečila dlhá životnosť a efektívnosť motorov bez ohľadu na to, aký typ paliva sa používa.
How to reel in operational cost and extend equipment life
Efficient cleaning of fuel and lube oil is essential on a fishing vessel, just as on other vessels. Fuel and lube oil quality means smooth and trouble-free operations, which increase equipment lifetime and productivity. Centrifugal separation is not only the most reliable treatment technology, but also the most cost-effective.
